Combined Canopy
Bioclimatic pergola – glass canopy – aluminium canopy

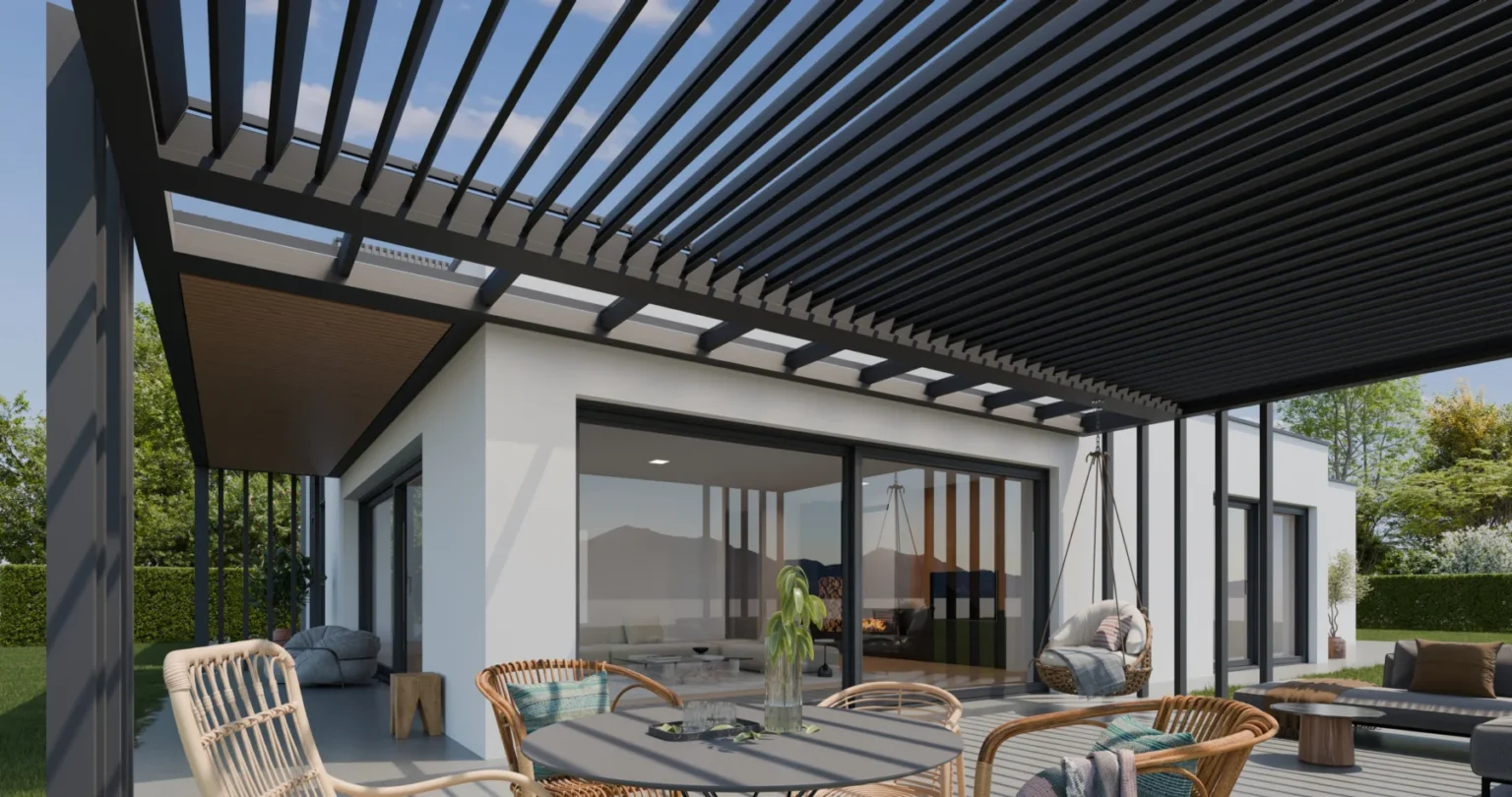

The combined carport is an innovative solution that allows for complete customization of outdoor space. With its modular design, it combines various roofing materials and shapes. We can combine a pergola, glass canopy and aluminium canopy. Regardless of your preferences and needs, the combined carport offers adjustable dimensions and an aesthetic and functional solution that will enhance your outdoor space, creating the ideal environment for relaxation, socialising, or outdoor work.
Aesthetic
Horizontal profile, integrated roof slope, combination of elements as one cohesive structure.
Flexible
Custom dimensions and a wide selection of accessories for personalizing the carport.
Durable
Made from premium materials such as aluminium, stainless steel, and Soltec, with a 7-year warranty, ensuring long lifespan and reliability.
Innovative
Advanced technological solutions and a unique design combine modernity and functionality, offering a completely new outdoor living experience.
Bioclimatic pergola
The Soltec bioclimatic pergola is a special type of canopy that, with its patented waterproof slats, allows control over shading, light, and ventilation of the terrace. It is the best solution that combines the reliability of a fixed canopy with control over the microclimate.
Glass canopy
Laminated tempered glass of high quality, with a thickness of 12 or 16 mm, is used for glass roofs. The glass canopy allows more light into interior living spaces while providing effective protection against the elements.
ALU canopy
The ALU canopy with a 3 cm thick ISO panel combines the lightweight properties of aluminium with excellent thermal insulation, preventing overheating and ensuring energy efficiency.

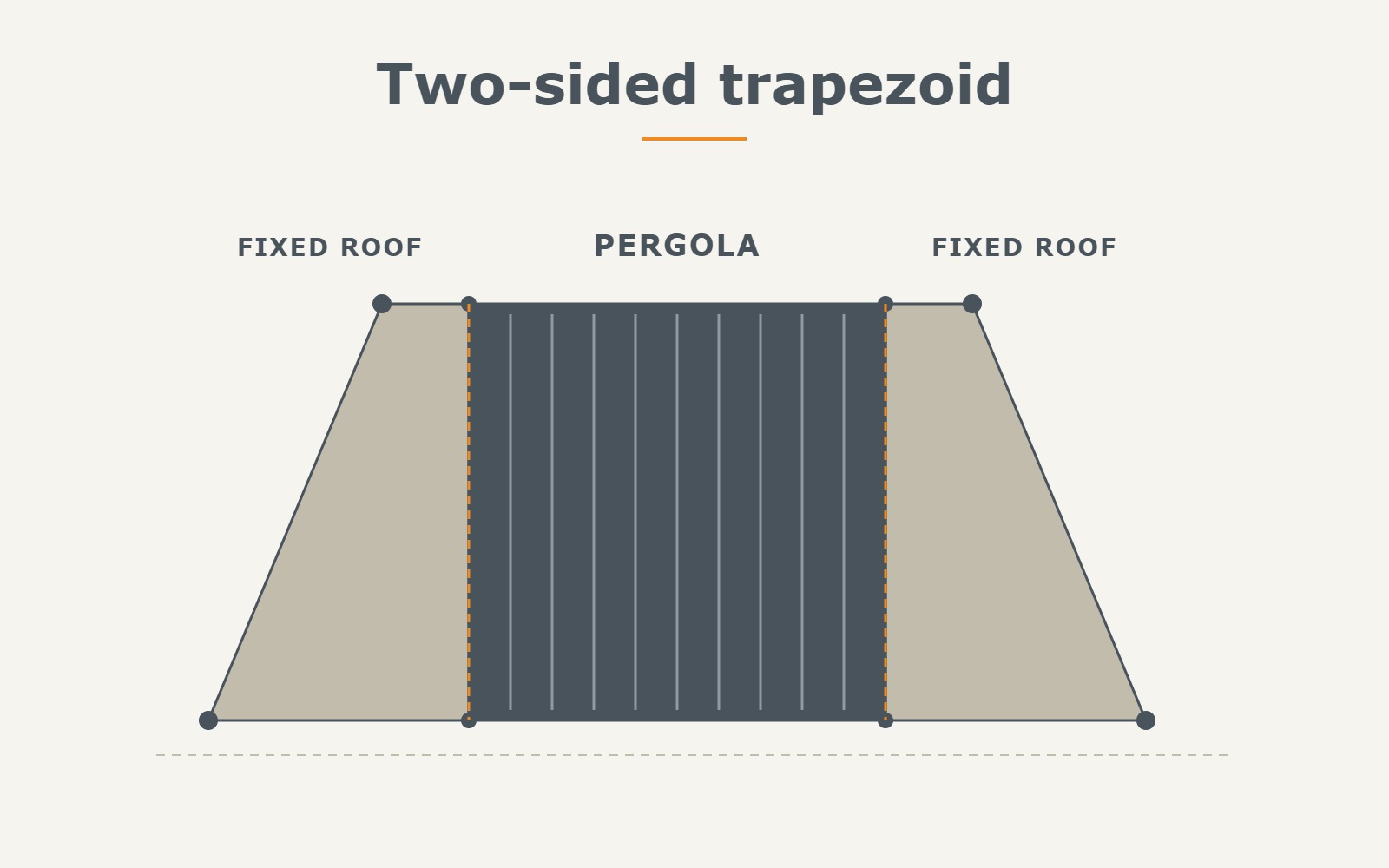

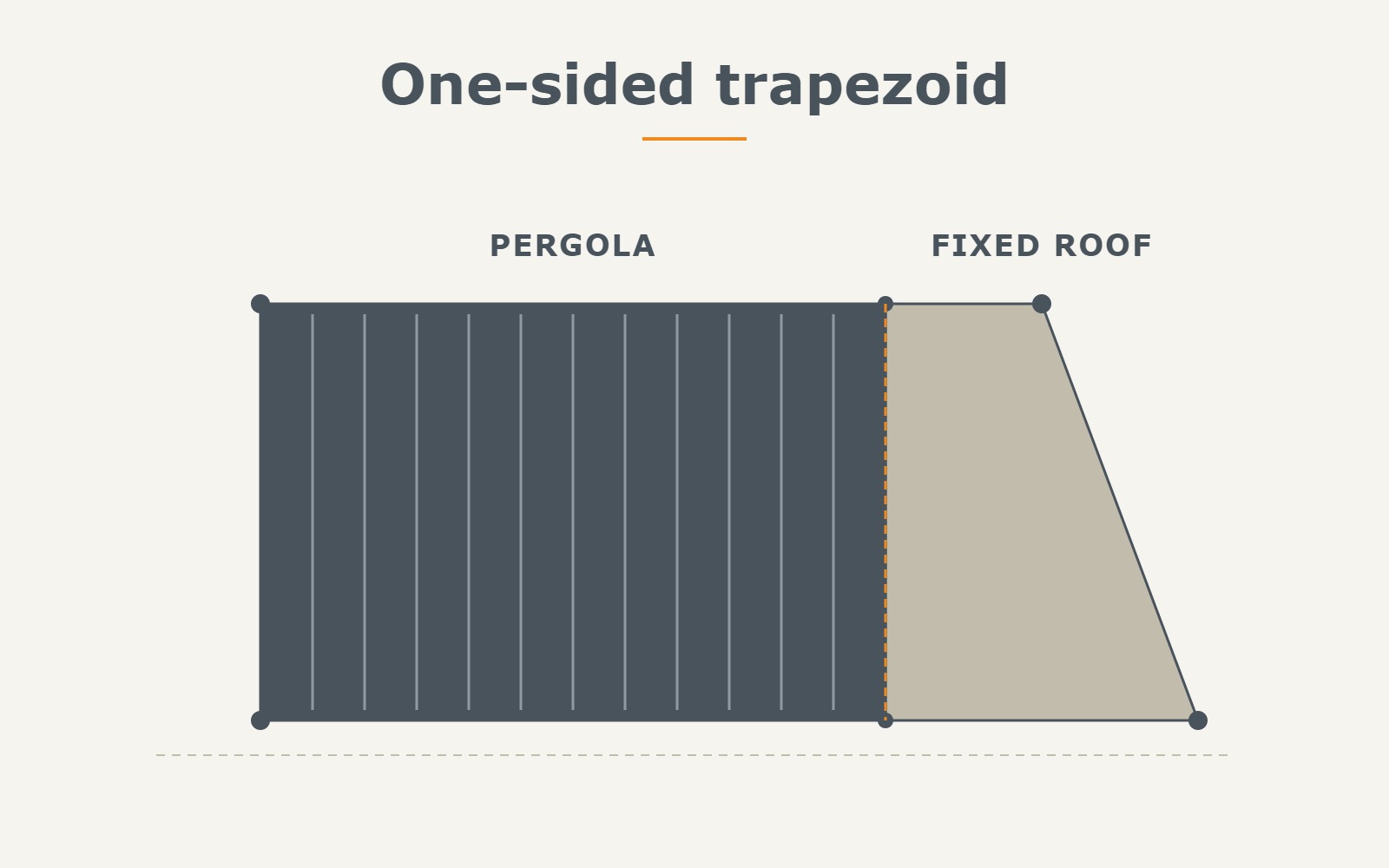

Combined Canopy – the most popular combinations
Colours
For canopy coating, we use advanced powder coating systems, where powder is electrostatically applied and cured at a controlled temperature. This ensures a uniform and durable finish, resistant to corrosion, UV rays, and weather conditions. The process follows the Swiss Qualicoat 2 standard.
For coastal areas, where high humidity and salt require additional protection, we offer the Seaside Protect option. All coating processes are carried out in a specialised partner facility, adhering to the highest environmental standards.
Stainless Steel and Aluminium – The Perfect Combination for Long-Lasting Protection
A canopy made from aluminium and stainless steel is an excellent choice due to its exceptional resistance to corrosion, ensuring a long lifespan with minimal maintenance. These high-quality materials also provide a modern and elegant design that seamlessly adapts to various architectural styles. Aluminium offers another key advantage – it is lightweight yet strong, meaning the carport does not put strain on existing foundations and allows for easy installation. This makes it an ideal solution for a quick and efficient setup without complex construction work.
Additional equipment for the Combined canopy
Due to the unified horizontal frame, the combined carport is an ideal platform for integrating additional accessories that further enhance the functionality and aesthetics of your outdoor space.
ZIP Roller Blinds – K130
ZIP roller blinds are designed to protect rectangular surfaces from sunlight, wind, and prying eyes. They are made from aluminium profiles with a 120 x 130 mm cassette, housing a PVC-coated screen fabric. This system allows for light regulation and reduced overheating, with motorised operation controlled via remote control. An optional wind sensor can be added for automatic retraction when wind speeds exceed 40 km/h.
Sliding Panels – H50
Sliding panels, made with an H50 aluminium frame, are mounted on rollers within an upper guide rail and are available as either fixed or sliding walls.
H50 L – features wooden rhomboid slats as infill.
H50 A – uses aluminium slats as infill.
Both types provide stable and long-lasting side protection.
Glass Sliding Panels – Type G1
Made from 10 mm tempered glass, these panels provide protection from wind and rain while maintaining an open and airy feel. They are mounted on rollers within a bottom aluminium sliding track, with transparent vertical rubber seals for enhanced sealing. The panels can slide left, right, or centrally, stopping at end points. A lock can be added for security.
Glass Folding Panels – Type G2
These folding panels allow for full opening and stacking of individual elements, providing maximum space flexibility. Made from 10 mm tempered glass, they feature transparent rubber seals for effective sealing. The panels fold in a harmonica-style system and can also be equipped with a lock for added security.
Brise-Soleil E300
The E300 vertical aluminium louvers (300 x 50 mm) provide dynamic side enclosure. Manual rotation allows for adjustable shading and ventilation, regulating light and heat transmission. The louvers are powder-coated in a selected RAL colour and designed for easy operation.
Fence – Type 1
The 1000 mm high aluminium fence is made of welded horizontal and vertical profiles, secured between posts.
Type 1A – Suitable for spans up to 3.5 m
Type 1B – Suitable for spans up to 4.5 m
Both types are powder-coated in a selected RAL colour.
Vertical Decorative Columns – R120-60
For enhanced aesthetics and shading, larger vertical columns can be replaced with smaller decorative columns (120 x 60 mm).
In the SL170 model, a group of 4 columns is installed alongside the frame.
Decorative ALU (Type S1) or WOODEN (Type S2) Ceiling
An additional ceiling can be installed under the F170 carport, made from wooden rhomboid slats of Siberian larch (20 x 70 mm, minimum spacing 20 mm). The wooden slats add a natural and warm appearance to the space. Alternatively, a decorative ceiling made of aluminium slats (30 x 50 mm, minimum spacing 30 mm) can be selected. These slats are powder-coated in a chosen RAL colour, providing a modern and minimalist look.
Box
A box can be installed under the carport, providing a practical enclosed storage space with a door. The width of the box matches the carport, while the length aligns with the roof beam. Two types of boxes are available:
Type L – Filled with wooden slats made of Siberian larch
Type ISO – Filled with ISO panels, 3 cm thick
Different door options are also available.
LED Lights
LED lights are integrated into the carport ceiling, providing functional illumination for the space. The light intensity can be adjusted using a remote control.
Available options:
Lengths: 0.5 m, 1 m, and 1.5 m
Light types: Neutral white and warm white
For More Comfort
To enhance comfort and protection, the F170 carport can be upgraded with additional features such as wind, rain, and light sensors. These smart additions automate system operation, ensuring optimal adaptation to weather conditions, extending the lifespan of the structure, and improving the user experience.
Heaters, Sensors, Power outlet, Control (via app or remote)
The perfect solution for your terrace
The Combined Canopy combines the best features of pergolas and classic fixed canopies, offering complete flexibility, protection, and aesthetic refinement. Adding ZIP roller blinds, glass walls, or lighting enables year-round use, regardless of weather conditions. Due to its high-quality aluminium construction, it is extremely durable and requires minimal maintenance, while providing a long-term solution that increases property value and enhances living comfort.
FAQ – Frequently Asked Questions
A Combined Canopy is a comprehensive solution that combines different roofing elements. We can combine a pergola, glass canopy and ALU canopy made from ISO panels. It allows complete customization of the outdoor space and combines aesthetic, flexible, durable, and innovative design.
Our canopies are made to measure, meaning they can be tailored to your desires and specific spaces.
Thanks to the unified horizontal frame, the installation is quick and easy. The installation is carried out by Soltec certified installers, ensuring fast, precise, and safe setup. Expert execution guarantees optimal stability of the structure, proper drainage, and long-term resistance to weather conditions.
Painting is done using advanced powder coating systems according to the Swiss standard Qualicoat 2. The optional Seaside Protect provides additional protection for coastal areas, where high humidity and salt are present. All procedures are carried out in specialized partner facilities that follow the highest environmental standards.
Using premium materials such as aluminium and INOX, we offer a 7-year warranty on the structure and a 10-year warranty on ISO panels (in accordance with the panel manufacturer’s instructions), ensuring a long lifespan and product reliability.
Yes, the Combined Canopy allows easy integration of various accessories, further enhancing the functionality and aesthetics of your outdoor space.
Our experts are available for free advice and space measurements to help you choose the best solution based on your needs and preferences
