Carport F240

The Most Versatile Carport

Soltec Carport F240

The Soltec Carport F240 is the most versatile model in our range, specifically designed for 2 vehicles. Made from aluminium and stainless steel (INOX), it ensures a long lifespan. It can be upgraded with additional features for even greater comfort and protection. With its modern, horizontal design, it seamlessly integrates with bioclimatic pergolas or other Soltec carports.

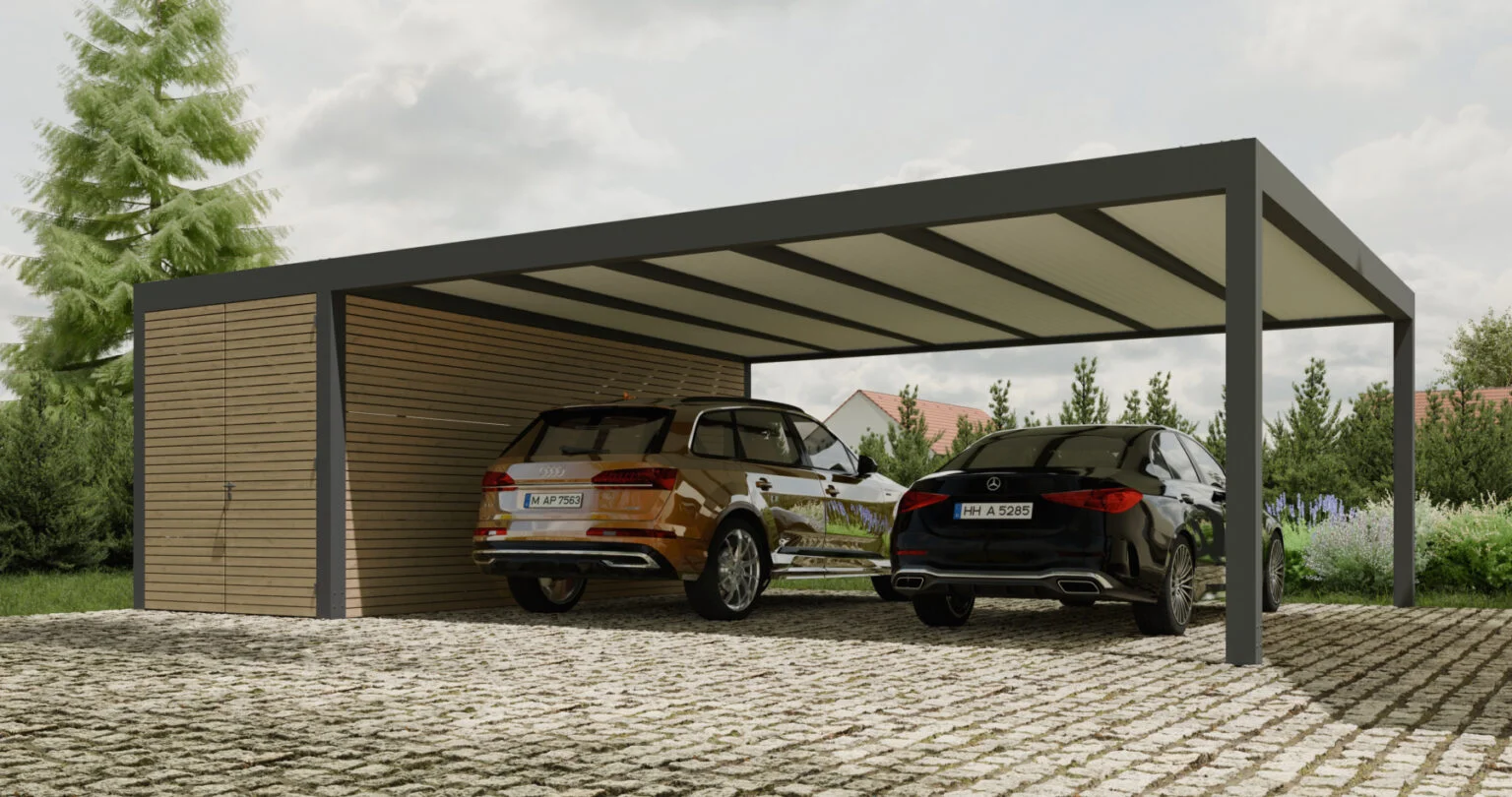

Soltec Carport F240 – 2 Cars

Our most versatile carport model provides ample space for 2 cars . It allows you to efficiently use the yard space for two cars or as a multi-purpose space.

• Profile: 240/150
• Dimensions: Up to 6000x5643x2800 mm
• Frame: Horizontal, aluminium frame
• Roof: ISO panels, 1.5% integrated slope
• Material: Aluminium and inox
• Drainage: Concealed, 2 water outlets
• Maximum snow load: 140 kg/m²
• Warranty: 7 years on the structure, 10 years on ISO panels

Soltec Carport F240 – 2 Cars + Box

In addition to protecting two vehicles, it provides extra covered space for storage. The entrance to the box is located at the front.

• Profile: 240/150
• Dimensions: up to 8973x6000x2800
• Box dimensions: 3416 mm (P1-P5) 4526 mm (up to 27 m2)
• Frame: horizontal, ALU frame
• Roof: ISO panels, 1.5% integrated slope
• Material: aluminium and inox
• Drainage: concealed, 3 water outlets
• Maximum snow load: 140 kg/m²
• 7 years warranty on the structure
• 10 years warranty on ISO panels

Soltec Carport F240 – 3 Vehicles

The Soltec Carport F240 for 3 vehicles is designed as a top-tier solution for protecting multiple vehicles. With its spacious and modern horizontal design, it seamlessly blends into the environment while allowing for upgrades with additional features.

• Profile: 240/150
• Dimensions: up to 8973x6000x2800 mm
• Frame: Horizontal, ALU frame
• Roof: ISO panels, 1.5% integrated slope
• Material: Aluminium and inox
• Drainage: Concealed, 3 water outlets
• Maximum snow load: 140 kg/m²
• Warranty: 7 years on the structure, 10 years on ISO panels

ZIP Roller Blinds – K130

ZIP roller blinds are designed to protect rectangular surfaces from sunlight, wind, and prying eyes. They are made from aluminium profiles with a 120 x 130 mm cassette, housing a PVC-coated screen fabric. This system allows for light regulation and reduced overheating, with motorised operation controlled via remote control. An optional wind sensor can be added for automatic retraction when wind speeds exceed 40 km/h.

Glass Sliding Panels – Type G1

Made from 10 mm tempered glass, these panels provide protection from wind and rain while maintaining an open and airy feel. They are mounted on rollers within a bottom aluminium sliding track, with transparent vertical rubber seals for enhanced sealing. The panels can slide left, right, or centrally, stopping at end points. A lock can be added for security.

Glass Folding Panels – Type G2

These folding panels allow for full opening and stacking of individual elements, providing maximum space flexibility. Made from 10 mm tempered glass, they feature transparent rubber seals for effective sealing. The panels fold in a harmonica-style system and can also be equipped with a lock for added security.

Brise-Soleil E300

The E300 vertical aluminium louvers (300 x 50 mm) provide dynamic side enclosure. Manual rotation allows for adjustable shading and ventilation, regulating light and heat transmission. The louvers are powder-coated in a selected RAL colour and designed for easy operation.

Fence – Type 1

The 1000 mm high aluminium fence is made of welded horizontal and vertical profiles, secured between posts.
Type 1A – Suitable for spans up to 3.5 m
Type 1B – Suitable for spans up to 4.5 m
Both types are powder-coated in a selected RAL colour.

Vertical Decorative Columns – R120-60

For enhanced aesthetics and shading, larger vertical columns can be replaced with smaller decorative columns (120 x 60 mm).
In the SL170 model, a group of 4 columns is installed alongside the frame.

Decorative ALU (Type S1) or WOODEN (Type S2) Ceiling

An additional ceiling can be installed under the F170 carport, made from wooden rhomboid slats of Siberian larch (20 x 70 mm, minimum spacing 20 mm). The wooden slats add a natural and warm appearance to the space. Alternatively, a decorative ceiling made of aluminium slats (30 x 50 mm, minimum spacing 30 mm) can be selected. These slats are powder-coated in a chosen RAL colour, providing a modern and minimalist look.

Box

A box can be installed under the carport, providing a practical enclosed storage space with a door. The width of the box matches the carport, while the length aligns with the roof beam. Two types of boxes are available:
Type L – Filled with wooden slats made of Siberian larch
Type ISO – Filled with ISO panels, 3 cm thick
Different door options are also available.

LED Lights

LED lights are integrated into the carport ceiling, providing functional illumination for the space. The light intensity can be adjusted using a remote control.
Available options:
Lengths: 0.5 m, 1 m, and 1.5 m
Light types: Neutral white and warm white

Sliding Panels – H50

Sliding panels, made with an H50 aluminium frame, are mounted on rollers within an upper guide rail and are available as either fixed or sliding walls.
H50 L features wooden rhomboid slats as infill.
H50 A uses aluminium slats as infill.
Both types provide stable and long-lasting side protection.

Fixed Walls FW25 and FI30

Fixed walls are designed as partitions that extend partially or fully along the sides of a carport or pergola. They are attached to secondary posts, which are anchored to the supporting frame and the ground. They are available as fixed walls that can be customized to suit the specific needs of the space. They can be made with ISO panels or slats from Siberian larch.

For More Comfort

To enhance comfort and protection, the F170 carport can be upgraded with additional features such as wind, rain, and light sensors. These smart additions automate system operation, ensuring optimal adaptation to weather conditions, extending the lifespan of the structure, and improving the user experience.
Heaters, Sensors, Power outlet, Control (via app or remote)

Park as you like

The Carport F240 offers exceptional flexibility, as it can be rotated in any direction, allowing for vehicle parking in various orientations. This functionality ensures optimal use of yard space and allows for layout adjustments based on the preferences and needs of the customer. The carport for 2 or 3 vehicles provides a practical and aesthetic solution for any home.
