Compact Carport for Demanding Weather Conditions
Soltec Carport SL170
The SL170 carport for one vehicle combines practicality and durability, specifically designed for one car and optimal for smaller spaces. Its visible roof slope ensures efficient water drainage, while you can choose the placement of the box – at the back, left, or right – according to your needs. This model is suitable for demanding environments, as it has the highest load capacity among our models, providing extra safety and stability even in harsher weather conditions.
Strong
Reinforced construction, snow load up to 240 kg/m²
Flexible
Custom dimensions, adjustable posts, various box positions
Durable
Aluminium, INOX, and Soltec craftsmanship, backed by a 7-year warranty
Versatile
Carport and custom storage space with box

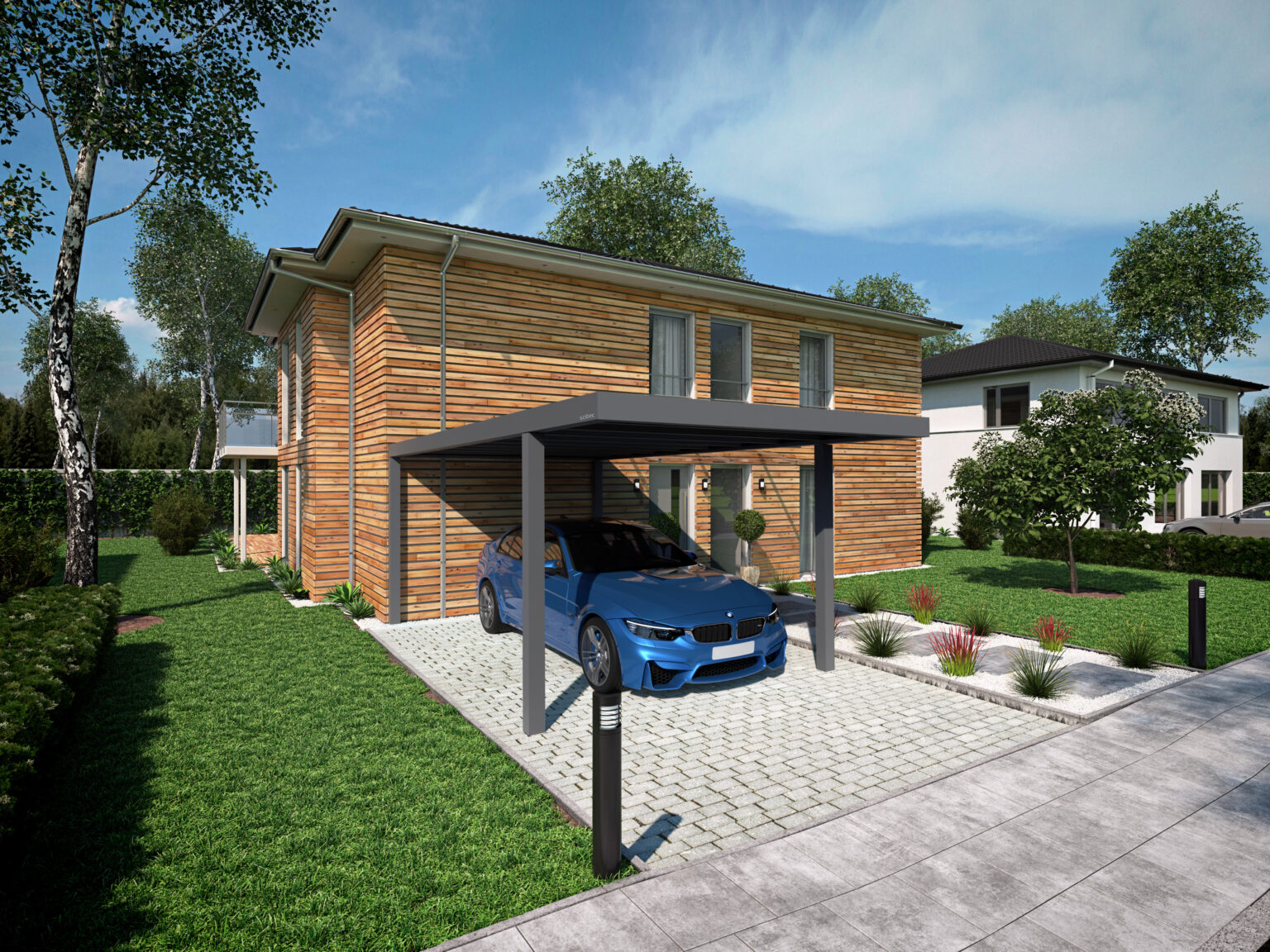

Carport SL170 – 1 car
The SL170 single carport combines a compact design with robust protection in demanding weather conditions. It is an excellent choice for making the most of narrow yards and driveways.
- Roof covering: ISO panel 3 cm
- Frame: 170/120
- Secondary profile: 80/50
- Post: 120/120
- Base type (option: painting or INOX) – external 120 – galvanized
- Visible roof slope (1.5%), different post heights
- Drainage: concealed, 2 water outlets
- 7-year warranty on the structure
- 10-year warranty on ISO panels
| Configuration | Maximum Length | Width |
| On 2 posts (maximum distance between posts 4.7 m) | 6000 mm (overhang 1.3 m) | 3140 mm |
| On 3 posts (maximum distance between posts 4.7 m) | 8000 mm | 3140 mm |
| Secondary load-bearing profile (at every) | Maximum snow load |
| 1200 mm | 100 kg/m² |
| 600 mm | 160 kg/m² |
| 300 mm | 240 kg/m² |
Carport SL170 + Back Box
The **Soltec Carport SL170** for one vehicle includes a **box at the back**. In addition to protecting one car, it also provides extra covered storage space. It is ideal for covering long and narrow spaces.
- Box dimensions: D x 1.2 m to D x 3 m (up to 24 m²)
- Roof covering: ISO panel 3 cm
- Frame: 170/120
- Secondary profile: 80/50
- Post: 120/120
- Base type (option: painting or INOX) – external 120 – galvanized
- Visible roof slope (1.5%), different post heights
- Drainage: concealed, 2 water outlets
- 7-year warranty on the structure
- 10-year warranty on ISO panels
| Configuration | Maximum Length | Width |
| On 2 posts (maximum distance between posts 4.7 m) | 6000 mm (overhang 1.3 m) | 3140 mm |
| On 3 posts (maximum distance between posts 4.7 m) | 8000 mm | 3140 mm |
| Secondary load-bearing profile (at every) | Maximum snow load |
| 1200 mm | 100 kg/m² |
| 600 mm | 160 kg/m² |
| 300 mm | 240 kg/m² |
Soltec Carport SL170 + Left or Right Box
The carport for 1 vehicle with a box combines the functionality of a carport with the convenience of enclosed storage. Its wider design provides a larger storage space, with access to the box from the front.
- Box dimensions: D x 1.2 m to D x 3 m (up to 24 m²)
- Roof covering: ISO panel 3 cm
- Frame: 170/120
- Secondary profile: 80/50
- Post: 120/120
- Base type (option: painting or INOX) – external 120 – galvanized
- Visible roof slope (2%), different post heights
- Drainage: concealed, 3 water outlets
- 7-year warranty on the structure
- 10-year warranty on ISO panels
| Configuration | Maximum Length | Maximum Width |
| On 6 posts (maximum distance between posts 4.7 m) | 8000 mm | 6000 mm |
| Secondary load-bearing profile (at every) | Maximum snow load |
| 1200 mm | 100 kg/m² |
| 600 mm | 160 kg/m² |
| 300 mm | 240 kg/m² |
Colours
For carport coating, we use advanced powder coating systems, where powder is electrostatically applied and cured at a controlled temperature. This ensures a uniform and durable finish, resistant to corrosion, UV rays, and weather conditions. The process follows the Swiss Qualicoat 2 standard. For coastal areas, where high humidity and salt require additional protection, we offer the Seaside Protect option. All coating processes are carried out in a specialised partner facility, adhering to the highest environmental standards
Stainless Steel and Aluminium – The Perfect Combination for Long-Lasting Protection
A carport made from aluminium and stainless steel is an excellent choice due to its exceptional resistance to corrosion, ensuring a long lifespan with minimal maintenance. These high-quality materials also provide a modern and elegant design that seamlessly adapts to various architectural styles.
Aluminium offers another key advantage – it is lightweight yet strong, meaning the carport does not put strain on existing foundations and allows for easy installation. This makes it an ideal solution for a quick and efficient setup without complex construction work.
Additional equipment for Carport SL170
Box
A box can be placed under the carport – a practical enclosed space with doors and posts in the corners. The size of the box can be adjusted to your needs: the width is always in line with the pergola, and the length is aligned with the roof beam.
Type L – The box wall is made with Siberian larch rhomboid slats (20 x 70 mm) with a minimum spacing of 20 mm.
Type ISO – Optionally, the box wall can also be made with 3 cm ISO panels in the same colour as the roof. The customer has the option of choosing doors with a lock. The doors are mounted on the desired corner post.
The box serves as an excellent additional space and allows for organised storage of tools, sports equipment, or garden furniture. Its integration under the carport protects the items from weather conditions such as rain, snow, and UV rays.
LED Lights
LED lights are integrated into the ceiling of the carport to provide functional illumination for the space. The light intensity can be adjusted using a remote control. Various lengths (0.5 m, 1 m, and 1.5 m) and light types (neutral white and warm white) are available for selection.
Practical and Strong Solution for Demanding Conditions
The Soltec SL170 carport for 1 vehicle combines robustness and flexibility, providing reliable protection for your vehicle even in the most demanding weather conditions. Its compact design makes it ideal for narrow courtyards. It can be upgraded with a box and LED lights, enhancing its functionality. Made from aluminium and INOX and powder-coated, it ensures a long lifespan. With the ability to adjust its load capacity, it is also suitable for the most challenging environments, including areas with heavy snow cover or strong winds.
FAQ – Frequently Asked Questions
The SL170 carport is made from aluminium and INOX, providing high corrosion resistance, a long lifespan, and minimal maintenance. The roof covering is an ISO panel (3 cm) – a sandwich panel with an insulating core.
Due to the use of corrosion-resistant and durable materials, maintenance is straightforward, involving only regular cleaning and occasional inspections, making it easy to keep the carport in excellent working condition.
The Soltec SL170 carport has the highest load capacity in its category, providing safe use even in demanding weather conditions and with higher loads. The load capacity is up to 240 kg/m², depending on the arrangement of the secondary profiles.
Yes, the model allows for the installation of a box, which can be positioned at the back, left, or right, providing flexibility based on your available space and specific needs for your yard.
The Soltec SL170 carport is available in various colours, protected with powder coating according to the Swiss Qualicoat 2 standard, which maintains the aesthetic appearance and functionality of the carport for many years.
Due to its robust construction and high load capacity, it is ideal for demanding environments, such as areas with heavy snow or strong winds.
The visible roof slope ensures optimal water and snow runoff through integrated drains, preventing excessive load accumulation and contributing to greater safety and stability.
Yes, the compact design of the SL170 model allows for optimal use of narrow spaces while providing all the necessary protection for one vehicle.
Due to the use of durable materials and an innovative design, you can expect a long lifespan, even with daily use in demanding conditions. The Soltec SL170 carport comes with a 7-year warranty on the structure and a 10-year warranty on ISO panels, in line with the panel manufacturer’s guidelines.
The SL170 carport has a strong construction for environments with higher weather loads. In addition, this carport offers:
- High quality at an affordable price – Soltec provides excellent cost-effective solutions with premium materials.
- Flexibility and modularity – Soltec F-series carports can be combined with other products and accessories, expanding usage possibilities.
- Long lifespan – The aluminium structure with powder-coated profiles ensures high resistance to weather conditions and minimal maintenance.
- In-house production and innovative solutions – Soltec develops its own products and does not rely on generic systems, offering greater adaptability and better technical solutions.
- Support and installation – Customers receive comprehensive support from selection to installation, with professional advice and precise execution.
