Carport F170

Carport – A Best-Selling Choice

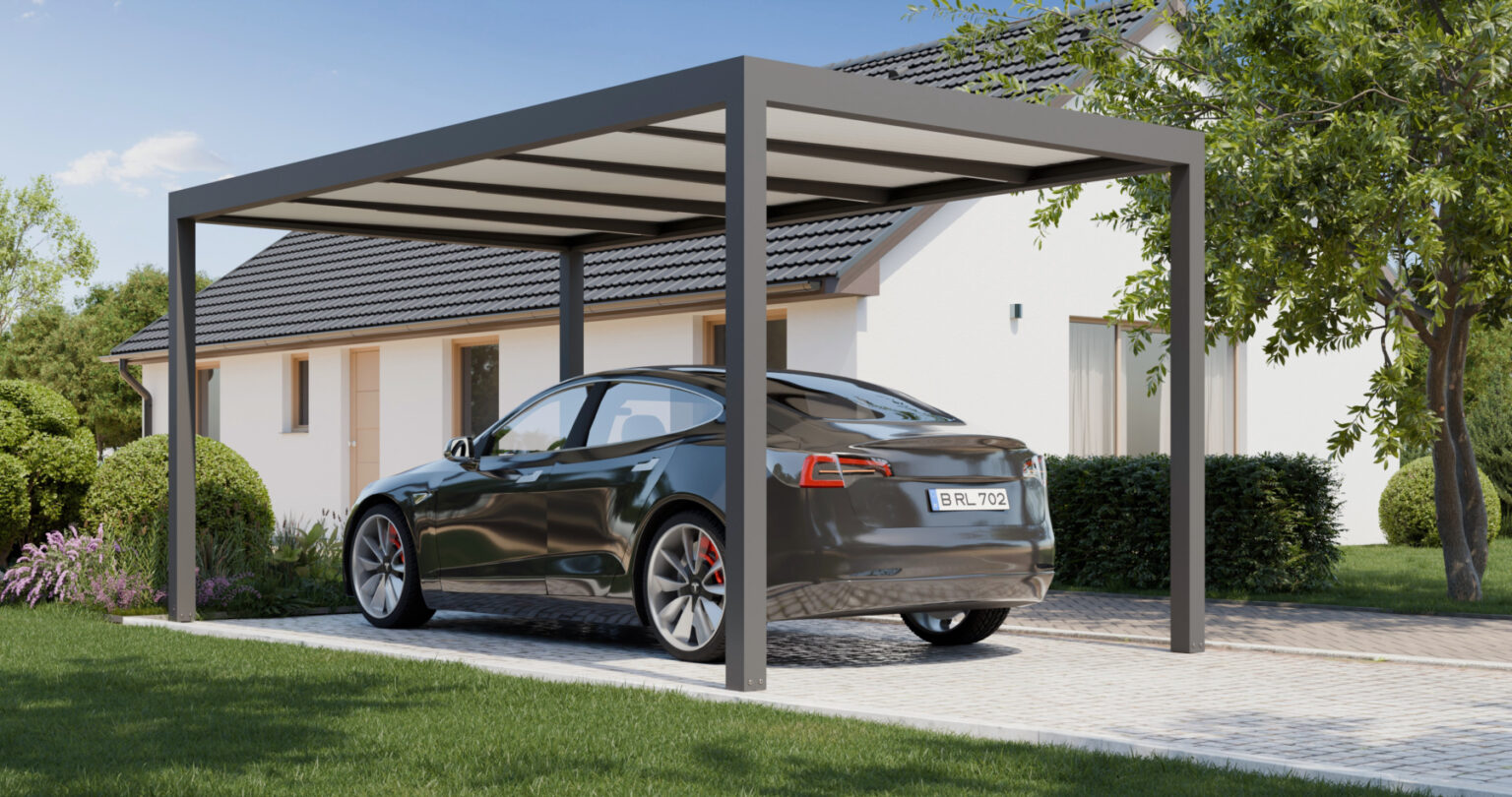

Soltec Carport SL 170F

The Soltec SL 170F is the most affordable model in our range, designed specifically for one vehicle. Made from aluminium and stainless steel, it ensures long-lasting durability. It can be upgraded with additional features for enhanced comfort and protection. With its modern, horizontal structure, it can be combined with a bioclimatic pergola or other Soltec F-series carports.

Carport F170 – 1 Car

Our most affordable carport model provides ample space for one car. It is an excellent solution for making the most of narrow driveways and courtyards.

• Profile: 170/120
• Dimensions: Up to 6000x3000x2800 mm
• Frame: Horizontal, aluminium frame
• Roof: ISO panels, 2% integrated slope
• Material: Aluminium and stainless steel
• Drainage: Concealed, 2 water outlets
• Warranty: 7 years on the structure, 10 years on ISO panels
• Maximum snow load: 140 kg/m²

Carport F170 – Extended

In addition to protecting one car, it also provides extra covered space for bicycles or motorbikes. With its extended design, this solution allows for the optimal use of long, narrow spaces.

• Profile: 170/120
• Dimensions: Up to 9000x3000x2800 mm
• Frame: Horizontal, aluminium frame
• Roof: ISO panels, 2% integrated slope
• Material: Aluminium and stainless steel
• Drainage: Concealed, 2 water outlets
• Warranty: 7 years on the structure, 10 years on ISO panels
• Maximum snow load: 140 kg/m²

Carport F170 + Box

Carport for 1 car with a box combines the functionality of a carport with the convenience of additional enclosed storage. Its extended design allows for the optimal use of long and narrow spaces.

• Profile: 170/120
• Dimensions: Up to 9000x3000x2800 mm
• Frame: Horizontal, aluminium frame
• Roof: ISO panels, 2% integrated slope
• Material: Aluminium and stainless steel
• Drainage: Concealed, 3 water outlets
• Integrated door
• Warranty: 7 years on the structure, 10 years on ISO panels
• Maximum snow load: 140 kg/m²

ZIP Roller Blinds – K130

ZIP roller blinds are designed to protect rectangular surfaces from sunlight, wind, and prying eyes. They are made from aluminium profiles with a 120 x 130 mm cassette, housing a PVC-coated screen fabric. This system allows for light regulation and reduced overheating, with motorised operation controlled via remote control. An optional wind sensor can be added for automatic retraction when wind speeds exceed 40 km/h.

Glass Sliding Panels – Type G1

Made from 10 mm tempered glass, these panels provide protection from wind and rain while maintaining an open and airy feel.
They are mounted on rollers within a bottom aluminium sliding track, with transparent vertical rubber seals for enhanced sealing. The panels can slide left, right, or centrally, stopping at end points. A lock can be added for security.

Glass Folding Panels – Type G2

These folding panels allow for full opening and stacking of individual elements, providing maximum space flexibility. Made from 10 mm tempered glass, they feature transparent rubber seals for effective sealing. The panels fold in a harmonica-style system and can also be equipped with a lock for added security.

Brise-Soleil E300

The E300 vertical aluminium louvers (300 x 50 mm) provide dynamic side enclosure. Manual rotation allows for adjustable shading and ventilation, regulating light and heat transmission. The louvers are powder-coated in a selected RAL colour and designed for easy operation.

Fence – Type 1

The 1000 mm high aluminium fence is made of welded horizontal and vertical profiles, secured between posts.
Type 1A – Suitable for spans up to 3.5 m
Type 1B – Suitable for spans up to 4.5 m
Both types are powder-coated in a selected RAL colour.

Vertical Decorative Columns – R120-60

For enhanced aesthetics and shading, larger vertical columns can be replaced with smaller decorative columns (120 x 60 mm).
In the SL170 model, a group of 4 columns is installed alongside the frame.

Decorative ALU (Type S1) or WOODEN (Type S2) Ceiling

An additional ceiling can be installed under the F170 carport, made from wooden rhomboid slats of Siberian larch (20 x 70 mm, minimum spacing 20 mm). The wooden slats add a natural and warm appearance to the space. Alternatively, a decorative ceiling made of aluminium slats (30 x 50 mm, minimum spacing 30 mm) can be selected. These slats are powder-coated in a chosen RAL colour, providing a modern and minimalist look.

Box

A box can be installed under the carport, providing a practical enclosed storage space with a door. The width of the box matches the carport, while the length aligns with the roof beam. Two types of boxes are available:
Type L – Filled with wooden slats made of Siberian larch
Type ISO – Filled with ISO panels, 3 cm thick
Different door options are also available.

LED Lights

LED lights are integrated into the carport ceiling, providing functional illumination for the space. The light intensity can be adjusted using a remote control.
Available options:
Lengths: 0.5 m, 1 m, and 1.5 m
Light types: Neutral white and warm white

Sliding Panels – H50

Sliding panels, made with an H50 aluminium frame, are mounted on rollers within an upper guide rail and are available as either fixed or sliding walls.
H50 L features wooden rhomboid slats as infill.
H50 A uses aluminium slats as infill.
Both types provide stable and long-lasting side protection.

Fixed Walls FW25 and FI30

Fixed walls are designed as partitions that extend partially or fully along the sides of a carport or pergola. They are attached to secondary posts, which are anchored to the supporting frame and the ground. They are available as fixed walls that can be customized to suit the specific needs of the space. They can be made with ISO panels or slats from Siberian larch.

For More Comfort

To enhance comfort and protection, the F170 carport can be upgraded with additional features such as wind, rain, and light sensors. These smart additions automate system operation, ensuring optimal adaptation to weather conditions, extending the lifespan of the structure, and improving the user experience.
Heaters, Sensors, Power outlet, Control (via app or remote)
